Honeywell r7284 Hard Lockout [Solved]

by
honeywell r7284 hard lockout

 The Honeywell r7284 hard lockout is a common problem that the majority of users face with this oil furnace.

Now, there are several reasons why the hard lockout occurs, including damaged CAD cell, blocked airflow, faulty motor, and thermostat setting.

honeywell r7284 hard lockout

On top of that, wrong oil volume, improper gas pressure, faulty gas valve along with several other factors cause the furnace to go into hard lockout.

In this Honeywell r7284 troubleshooting guide, we will discuss the issues along with their solutions to fix the hard lockout. So, continue reading.

Table Of Contents

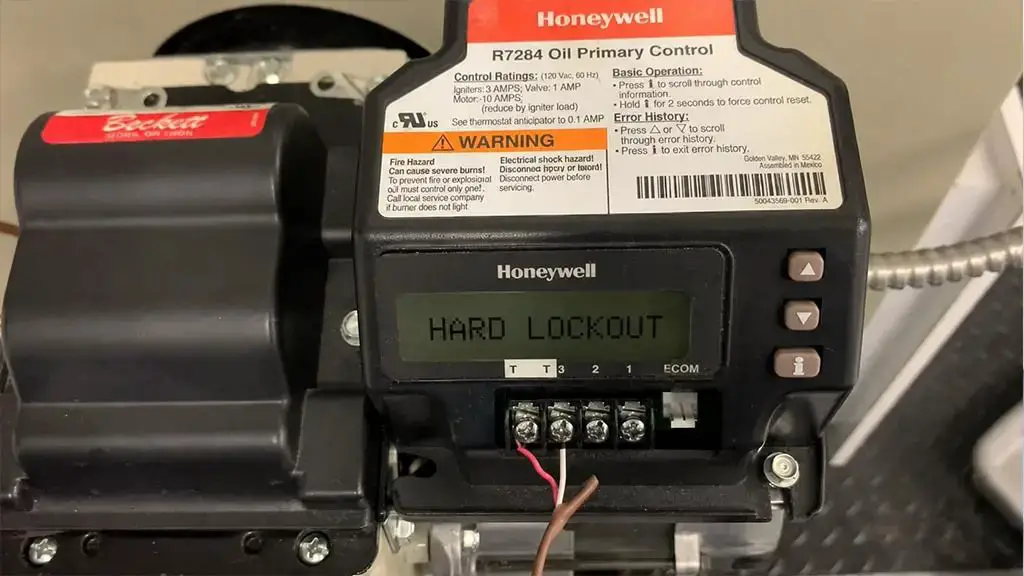

What Is Honeywell r7284 Hard Lockout

The Honeywell r7284 and all similar oil furnaces typically come with 2 types of lockout. The purpose of the lockout is to make sure that the furnace doesn’t cause any damage and to prevent unsafe functionality.

When oil furnaces are turned on, there is an ignition sequence that takes place which lights up a flame in order to heat up the oil furnace and generate heat.

There is a sensor in the oil furnace which detects the flame in the oil furnace. If the sensor fails to detect the flame within a certain period of time, then it will cause a temporary shutdown of the furnace.

The temporary shutdown is known as the soft lockout. After three attempts of detecting the flame, the Honeywell r7284 goes into a hard lockout.

How To Reset Honeywell r7284 To Fix Hard Lockout Instantly

The right way of solving the Honeywell r7284 hard lockout is to reset the system. The steps for properly resetting the oil furnace are as follows:

  • Switch the main connection to the oil furnace and unplug it.

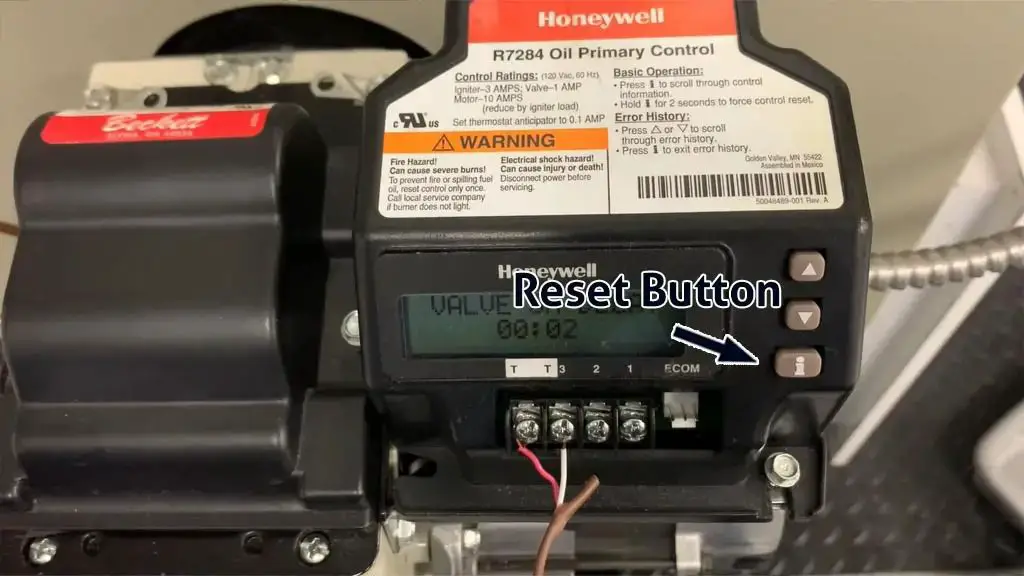

  • Locate the ‘i’ button on the furnace and press it for about 10 seconds to make the system go into Standby.
  • Release the button and wait for a few seconds before plugging the furnace back in.
  • Turn on the Honeywell r7284 and make sure that it is working normally.

In case, the hard lockout issue isn’t solved after resetting the furnace, find out the issue causing the problem by reading the below part of our guide. Then fix the issue on your own and your Honeywell r7284 will start functioning again.

Reasons Behind Honeywell r7284 Hard Lockout [Solved]

Here, we will discuss each and every issue that causes Honeywell r7284 hard lockout and how to solve it. So, let us dive deep into the solutions.

Note: You can also read how to fix Atwood Furnace ignition lockout fault.

1. Faulty CAD Cell

One of the most common reasons why the Honeywell r7284 goes into hard lockout is a faulty CAD Cell. The work of the CAD cell is to detect the flame in the oil furnace.

If the CAD cell isn’t working properly, then it won’t be able to detect the flame which in turn will cause the Honeywell r7284 to lockout. An unclean CAD cell also contributes to the problem.

How To Fix It

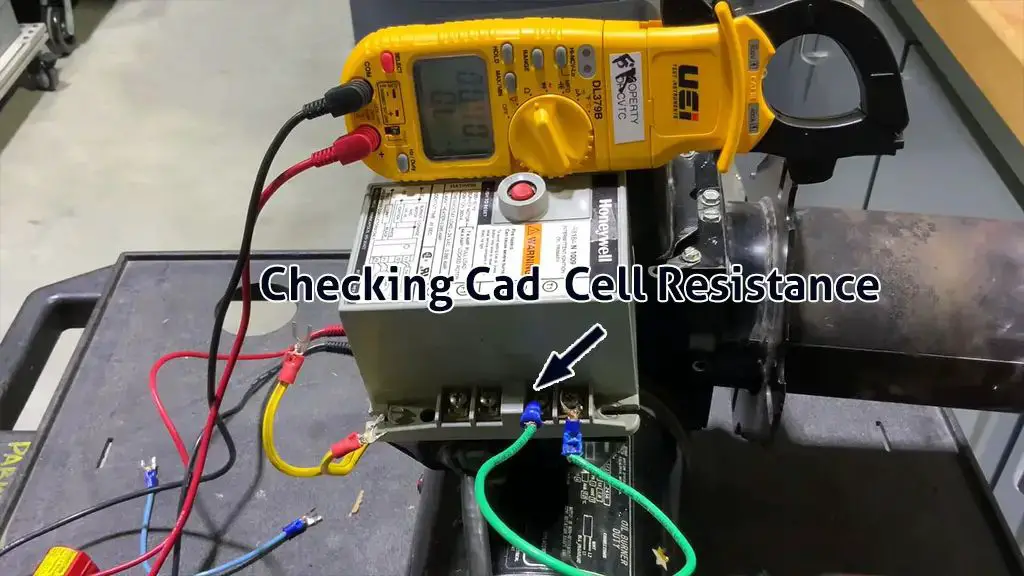

To fix the Honeywell r7284 damaged CAD cell issue, check the CAD cell properly and make sure that it’s working properly.

Clean the cell properly and maintain a proper cleaning schedule. Repair or replace the cell and turn on the oil furnace to solve the hard lockout problem.

2. Blocked Airflow

The oil furnace requires proper airflow in order to function properly. Dirt, debris, and so on accumulate in the air pipes of the furnace which disrupts the airflow.

The sensor won’t be able to detect flame and the furnace will not heat up if it doesn’t get the required airflow.

How To Fix It

Turn off the main connection to the furnace and properly check the air pipes. Examine and clean the pipes nicely in order to make sure that the airflow is proper.

Do not forget to maintain a proper cleaning schedule to keep the pipes free of dirt, debris, etc.

3. Faulty Motor

A faulty motor is another common reason that causes Honeywell r7284 hard lockout issue.

If the motor is damaged in any way, then it won’t run thus preventing the sensor from detecting the flame.

How To Fix It

Turn the furnace off and examine the motor properly. Make sure that it is well-connected and not damaged in any way. Secure the connection if you come across any wiring issues or replace the motor if it is faulty.

Restart the furnace to see whether the Honeywell hard lockout issue is resolved or not.

4. Malfunctioning Capacitor

A damaged capacitor often sends the Honeywell r7284 into hard lockout. The work of the capacitor is to provide the required energy to move the motor and fan in order to light the flame in the furnace.

A faulty capacitor won’t be able to do the required job; thus, resulting in a lockout.

How To Fix It

Turn the furnace off and check the condition of the capacitor. Make sure that it is functioning properly and examine it for any damage.

Replace or repair the faulty capacitor with a new one and turn the Honeywell r7284 back on.

5. Damaged Gas Valve

The gas valve plays a major role in the proper operations of the Honeywell r7284. The gas valve supplies gas to the pilot light and burner tray of the furnace.

A faulty gas valve is often the reason behind the oil furnace not getting the required amount of gas. The flame will not light if there isn’t enough gas supply.

How To Fix It

Check the gas valve to the Honeywell r7284 and make sure that the gas valve is turned on. Examine the valve properly and replace it in case there is any leakage or faults.

6. Loose Wiring

Loose wiring to the Honeywell r7284 results in a hard lockout of the furnace. The wiring issue will affect the connection of the sensor which detects the flame.

If the sensor fails to detect the flame within a certain period of time, then the furnace ends up being in a hard lockout.

How To Fix It

Open the control board to the Honeywell r7284 and make sure that all the wires are connected properly in place.

Take help from the Honeywell r7284 manual and put all the loose wires back in place properly and ensure a secure connection.

7. Unclean Burner Tray

The incoming oil heats up with the help of the pilot light. The oil then heats up the burner tray which then helps to heat more oil in the furnace.

Now the problem of hard lockout arises when the burner tray accumulates dirt, debris, and other impurities from the oil.

How To Fix It

Turn off the oil furnace and let it cool down completely. Once the burner tray cools down, take it out and clean the tray properly.

Make sure that you remove all the accumulated dirt particles and clean the burner tray on a regular basis.

8. Irregular Gas Pressure

Gas pressure plays a major role in the functionality of the oil furnace. Honeywell r7284 won’t be able to function properly and will go into hard lockout if the gas pressure is irregular.

The problem with irregular or incorrect pressure arises when there is a buildup of dirt, debris, and so on in the gas pipes. Not only that, but problems with the pressure gauge also contribute to the issue.

How To Fix It

In order to fix the Honeywell r7284 gas pressure problem, turn off the oil furnace and examine the gas pipes properly. Clean the pipes to remove all sorts of buildup and ensure a proper flow.

Maintain a regular cleaning schedule and keep the pipes clean. Check the pressure gauge and make sure that it is working properly. Repair or replace the gauge and ensure that the pressure is set at the correct setting.

9. Pilot Flame Problem

Another common reason behind the Honeywell r7284 not working is a faulty pilot flame. The pilot flame works as an igniting source for the furnace and heats up the incoming flame.

The flame will not light if the pilot flame is damaged and will cause the furnace to go into a hard lockout.

How To Fix It

Turn off the oil furnace properly and examine the pilot flame. Repair or replace the pilot flame if it is defective with the help of the Honeywell manual and make sure that it’s set properly. Turn on the oil furnace and ensure that it’s working perfectly.

10. Defective Control Board

The control board is undoubtedly one of the most important components of an oil furnace. One of the common reasons that cause a hard lockout on the Honeywell r7284 is a defective control board.

Over time, the keys or control board gets damaged which prevents the sensor from identifying the flame.

How To Fix It

Turn off the main connection to the oil furnace and open the control board. Check for any damaged or defective keys and repair or replace those keys.

Ensure that the control board is set properly and turn the furnace back on to make sure that it’s working properly.

11. Oil Impurities

A major reason why the Honeywell r7284 goes into a hard lockout is the dirty oil used in the furnace.

Impurities in the oil often cause the pipes to get blocked which in turn prevents the proper flow of oil. If the oil doesn’t flow into the furnace properly, then the flame will not light.

How To Fix It

Before putting oil in the furnace, make sure that it’s clean and maintain a cleaning schedule to prevent the pipes from getting blocked. Change the oil in the furnace on a regular basis.

12. Improper Oil Volume

Another reason why the Honeywell r7284 often goes into hard lockout is due to the improper oil volume in the furnace. It is essential to ensure that the amount of oil put in the furnace is correct and not excessive or less than required.

The use of excess oil in the furnace creates additional pressure on the Honeywell r7284 which in turn affects the performance. Using less oil than the required amount will not light up the flame at all.

How To Fix It

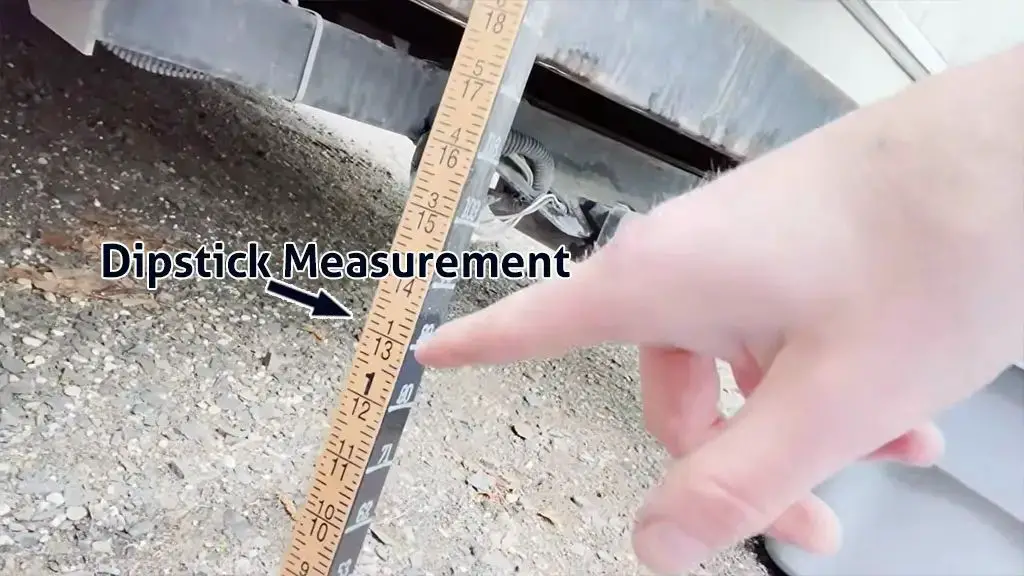

Turn off the oil furnace and check the amount of oil present on a regular basis. Fill the oil to the right level and do not overflow it.

Make sure that there is enough oil at all times to operate the Honeywell r7284.

13. Malfunctioning Thermostat

The thermostat is a major part of the oil furnace and helps it to reach the required temperature.

If the thermostat is defective or not working in any way, then it won’t heat up the furnace; thus, resulting in a hard lockout. This will prevent further damage caused by the oil furnace.

How To Fix It

Examine the thermostat connected to the furnace and make sure that it’s set at the right temperature.

Replace or repair the thermostat if it’s defective and turn on the oil furnace. Set the temperature at the right setting to ensure that it heats up properly.

How To Maintain The Honeywell r7284

Maintaining the Honeywell r7284 is essential in order to make sure that it performs properly and doesn’t go into lockout.

In order to maintain the oil furnace, make sure that all the components are working perfectly. Properly replace or repair the components and pieces when needed.

Keep the pipes clean at all times in order to prevent the accumulation of dirt, debris, and so on. Maintain a regular cleaning schedule and keep the furnace clean.

Always keep an eye on the temperature, pressure, and gas settings and make sure that these are set in the right setting. Check and change the oil on a regular basis and make sure that the right amount of oil is present in the furnace.

Why It’s Important To Maintain Your Honeywell r7284

There are quite a few reasons why it is essential to properly maintain the Honeywell r7284. Let us take a look at these reasons behind maintenance.

i) Ensure Proper Heating

If the Honeywell r7284 isn’t maintained properly, then it will not be able to provide proper heating. This will not only be an inconvenience but will also prevent you from the cozy heat on harsh winter days.

ii) Saves Energy

A properly maintained Honeywell r7284 ensures perfect functionality, which means it will only use the required amount of energy. A poorly maintained oil furnace won’t be able to heat up properly and will use more energy than required.

Maintaining the oil furnace properly won’t only save energy but will also help you to save money on electricity.

iii) Lasts Longer

Oil furnaces are expensive and replacing them each year isn’t really an option. Maintaining the Honeywell r7284 properly will make sure that it lasts for a longer period of time.

Thus, making sure that you can enjoy its service for a long time without having to worry about purchasing a new unit.

FAQs:

How Many Times Can I Reset My Honeywell r7284?

You can reset the Honeywell r7284 two times for a hard lockout. The ignition sequence accumulates oil every time in the burner tray which can be explosive.

Why Is My CAD Cell Dirty?

The CAD cell in the Honeywell r7284 accumulates dirt, debris, along with soot from burning oil in the furnace. Cleaning the dirty CAD cell is important to maintain proper service.

How Often Should I Clean The Honeywell r7284?

Clean the Honeywell r7284 properly before the heating season begins. Plus, maintain a fixed schedule to clean the CAD cell, pipes, and other components.

Conclusion

Now that we are at the end of the guide, you know how to solve the Honeywell r7284 hard lockout easily. We have discussed all the possible causes and solutions above.

Take help from our guide and solve the issues whenever you encounter a hard lockout on your Honeywell r7284.

If you have any queries or questions about the Honeywell r7284, leave a comment for us below. We will get back to you with a solution ASAP.
